ROCKFORD FOSGATE EQUIPMENT
• 5 EA 4 Channel Amps-2000 Watts RMS
• 2 EA Mono Amps-2000 Watts RMS
•1 EA 10” Sub Woofer-100-Watts RMS
• 4 EA 15” Sub Woofers-2400 Watts RMS
• 8 EA Pro Tweeters-400 Watts RMS
• 8 EA Pro Midrange-800 Watts RMS
• 3PR Full Range Spkrs-225 Watts RMS
• 2EA 32” TV’s • 2EA 48” TV’s
Kenwood Video entertainment system

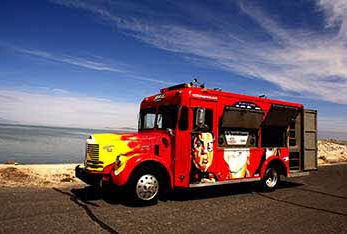

1955 REO Speedwagon “Milk Truck” Ready to get Rockin’

LABOR PERFORMED: •Welded steel supports installed •Gas struts lifts installed •Hinges reconditioned and changed •2ea 48” TV’s mounted & installed

MATERIALS---
2000 FEET OF MISC WIRE
4 EACH CUSTOM CUT PLEXYGLASS SHEETS
6 EACH 4X8 SHEETS OF 1/4" MDF
6 EACH 4X8 SHEETS OF 1/2" MDF
6 EACH 4X8 SHEETS OF 3/4" MDF
16 YARDS OF INTERIOR CARPET
12 YARDS OF INTERIOR VINYL

Switching the rear doors for better viewing during Demo’s and Parties!

Welding steel rods for strength and mounting 4 TV’s

ROCKFORD FOSGATE EQUIPMENT
• 5 EA 4 Channel Amps-2000 Watts RMS
• 2 EA Mono Amps-2000 Watts RMS
•1 EA 10” Sub Woofer-100-Watts RMS
• 4 EA 15” Sub Woofers-2400 Watts RMS
• 8 EA Pro Tweeters-400 Watts RMS
• 8 EA Pro Midrange-800 Watts RMS
• 3PR Full Range Spkrs-225 Watts RMS
• 2EA 32” TV’s • 2EA 48” TV’s
Kenwood Video entertainment system

EQUIPMENT---
5 EACH ROCKFORD 4 CHANNEL AMPLIFIERS - 2000 WATTS RMS TOTAL
2 EACH ROCKFORD MONO 1 CHANNEL AMPLIFIERS - 2000 WATTS RMS TOTAL
4 EACH ROCKFORD 15" SUBWOOFERS - 2400 WATTS RMS TOTAL
1 EACH ROCKFORD 10" SUBWOOFER - 100 WATTS RMS
8 EACH ROCKFORD PUNCH PRO 4" TWEETERS - 400 WATTS RMS TOTAL
8 EACH ROCKFORD PUNCH PRO 6.5" MIDRANGE WOOFERS- 800 WATTS RMS TOTAL
3 PAIRS OF ROCKFORD 6.5" FULL RANGE SPEAKERS - 450 WATTS RMS TOTAL
1 KENWOOD 6.1" TOUCHSCREEN MULTIMEDIA ENTERTAIMENT SYSTEM WITH BLUETOOTH & HD RADIO
3 EACH XS POWERS 2,500 AMP POWER CELL BATTERIES POWER 4000 WATTS OF RMS POWER
9 EACH CIRCUIT PROTECTOR BREAKERS

10 EACH 8 FOOT STICKS OF 3/4" STEEL SQUARE TUBING
5 YARDS OF GRILL CLOTH
5 GALLONS OF ADHESIVE CONTACT CARPET GLUE
2 GALLONS OF FIBERGLASS RESIN
2 BOTTLES OF WOOD GLUE
1 PINT OF AUTOMOTIVE CAR PAINT
68 SQUARE FEET OF HUSHMAT SOUND DAMPING
500 MISC SCREWS / 500 FINISH NAILS
8 EACH 80 POUND GAS STRUTS
7 EACH TOGGLE SWITCHES
2 EACH 10 AMP AC/POWER CONDITIONERS
2 EACH 110 VOLT AC TO 12 VOLT DC 80 AMP POWER CONVERTERS
5 EACH AC POWERS RECEPTICALS
2 EACH 50" FLAT PANEL TV'S
2 EACH 32" FLAT PANEL TV'S
1 EACH HDMI SPLITTER
1 EACH 12 CHANNEL AUDIO MIXER
1 PS4

Hushmat Sound Damping, to reduce and eliminate noise, vibration, heat to produce better sound.

Amplifier/speakers column to be attached to the bass wub woofer enclosure. 2 each 4-channel 800 watt amplifiers and 1 each 1-channel mono 1,000 watt amplifier. Fiberglassed and drying waiting for finish fiberglass coat.

Over 350 man hours of labor and 2,000’ of various guages and wire, both AC and 12 volt.

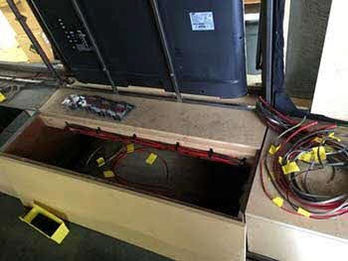

The first of the MESA Wire Installation. The Speed Wagon will have approximately 1,500 feet of various gauges of wire when completed

Added cosmetic plexiglass windows and finished wood trim attached to the sub woofer enclosure.

THE FOUNDATION OF ANY KICK BUTT
“CAR STEREO” SYSTEM IN BIG BASS!
• Custom bass enclosures built from scratch and built strong enough for 47.2 lbs. of woofers, for each side of the Speedwagon
•4 each Rockford Fosgate 15” P-3 sub woofers that pack 600 watts of RMS power each, for a total of 2400 watts RMS
• The enclosures will be finished with plexiglass, wood trim speckled paint and vinyl.

Final coating of fiberglass for strength and bondo for smoothness before the vinyl wrap.

110 Volt to 12 Volt Power converter, installation has now exceeded 1,000 feet of various gauge mesa wire.

Installation of 3 XSPower 2,500 Amp Power Cell Batteries to adequately power 4,000 watts of RMS Power and additional Circuit Protection breakers.

Installers
Mike Sandoval--
ADVANCED MECP CERTIFIED CUSTOM INSTALL TECHNICIAN AND IS A
TOP 12 INSTALLER IN MOBILE MAGAZINES RETAILER ISSUE OF THE YEAR!
Brad Morris
ADVANCED MECP CERTIFIED CUSTOM INSTALLÂ TECHNICIAN
Matthew Powers
CUSTOM INSTALL TECHNICIAN
Jeremy White
CUSTOM FABRICATION TECHNICIAN

Connected Control panel for Kenwood HD Radio, Video/Entertainment system.

Final Amp and Speaker Panel sizing for wiring and before fiberglassing and applying the vinyl coat

Final fiberglassing, sanding and vinyl wrap for amp-mid sub and tweeter towers. Getting ready to blow your mind!

Carpeted and vinyl covered control panel, with opening for switching panel and USB channels.

Sponsoring logo’s mounted on acrylic panel with speaker panel and all exterior systems “ready to go”

Completed and installed control panel, getting ready to send signal to the amplifiers & speakers.
